HSI Crushers

HSI crushers reduce large rocks or ore by means of compression. Mechanical pressure is applied using the crusher’s two jaws; one is fixed while the other reciprocates. There are primary and secondary types of HSI crushers. Horizontal shaft impact (HSI) crushers are known for high reduction ratios, especially when processing soft and medium-hard materials. HSI’s are used in recycling, hard rock and soft materials.

MODELS

Primary Impact Crusher
Primary Impact Crushers are preferred for their high performance and high reduction ratios in crushing soft-character substances like gypsum and limestone. Due to the different principle of crushing these materials, the reduction ratio is higher than in Jaw Crushers.

Secondary Impact Crushers
With their high performance, high reduction percentages and perfect cubical-shaped final product, AGGRETEK secondary impact crushers are a great economical solution for crushing both medium-hard and hard materials such as river gravel, limestone and dolomite. The grinding type of AIH series impact crushers provide a very competitive design for the asphalt recycling process.

Tertiary Impact Crusher
Designed for crushing soft and medium-hard materials with close grain distribution and good cubical shape ratios, tertiary impact crushers are an excellent solution in the production of fine aggregates for concrete and asphalt applications. Adjustable and interchangeable breaker plates enable grinding up to 50 percent with a durable rotor that can operate in both directions, lowering overall operational and inventory costs of the machine.

  2. Equipment
  3. Crushers
  4. HSI Crushers

High Performance For Higher Profitability

AGGRETEK AIH crushers, offering high reduction ratios, reduced power consumption, easier and safer maintenance are the solution for operating conditions where output and productivity demands are increasingly stringent.

The strength of AIH crushers makes them ideal for diverse applications and configurations. These crushers can replace large jaw crushers and be fed with material blocks the size of their feed opening.

AIHP Series (Primary)

AGGRETEK AIHP crushers, offering high reduction ratios, reduced power consumption, easier and safer maintenance are the solution for operating conditions where output and productivity demands are increasingly stringent.

The strength of AIHP crushers makes them ideal for diverse applications and configurations. These crushers can replace large jaw crushers and be fed with material blocks the size of their feed opening.

AIHS Series (Secondary)

With their high performance, high reduction percentages and perfect cubical-shaped final product, AGGRETEK secondary impact crushers are a great economical solution for crushing both medium-hard and hard materials such as river gravel, limestone and dolomite.The grinding type of AIH series impact crushers provide a very competitive design for the asphalt recycling process.

AIHT Series (Tertiary)

Designed for crushing soft and medium-hard materials with close grain distribution and good cubical shape ratios, tertiary impact crushers are an excellent solution in the production of fine aggregates for concrete and asphalt applications. Adjustable and interchangeable breaker plates enable grinding up to 50 percent with a durable rotor that can operate in both directions, lowering overall operational and inventory costs of the machine

All HSI Crushers Feature

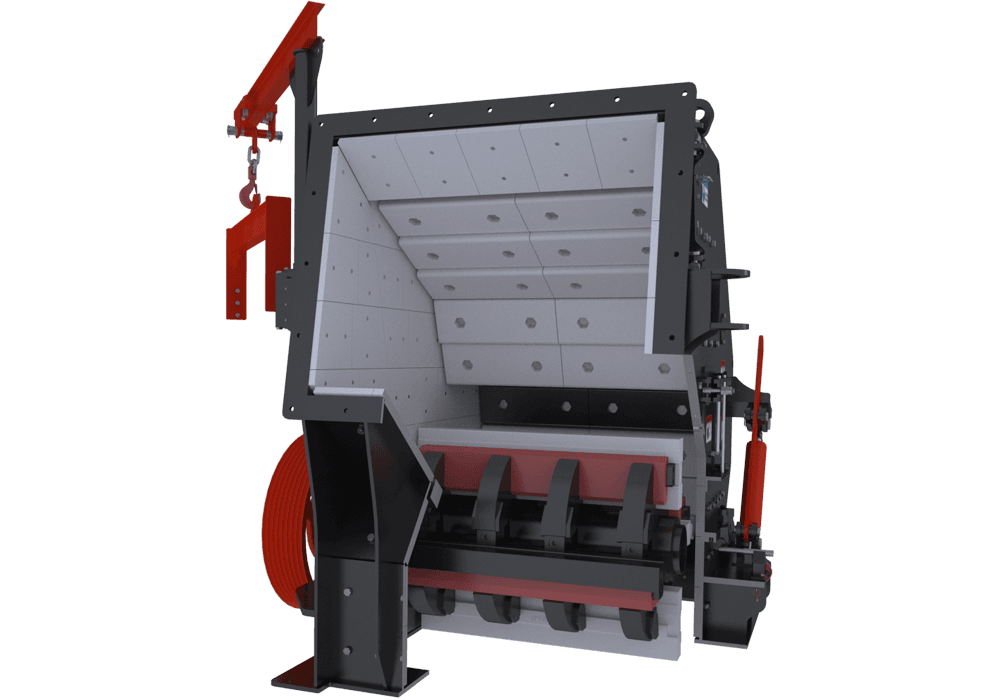

CRUSHER BODY
Crusher main body is fabricated from low carbon steel. Crushing chamber is completely lined with thick, interchangeable, bolt-on abrasion resistant (AR) liners.
Sensors on the frame make maintenance interventions safer by preventing machine start up. Inspection doors located all around the frame make it possible to reach the interior of the Crusher.
WEAR PARTS
Enhanced solid wear parts and liners.
ROTOR
The quality of the dynamic rotor balance is G 6.3, according to ISO 1940/1
BEARINGS
High quality heavy-duty bearings, with bearing temperature sensors.

Primary Impact Crushers
AIHP1111
Rotor Diameter
inch
43
Rotor Width
inch
42
Capacity
stph
170-225
mtph
150-200
Power
HP
220
Weight
lbs
32000
Primary Impact Crushers
AIHP1114
Rotor Diameter
inch
43
Rotor Width
inch
55
Capacity
stph
275-385
mtph
250-350
Power
HP
270
Weight
lbs
38600
Primary Impact Crushers
AIHP1313
Rotor Diameter
inch
51.2
Rotor Width
inch
51.2
Capacity
stph
330-550
mtph
300-500
Power
HP
340
Weight
lbs
39160
Primary Impact Crushers
AIHP1515
Rotor Diameter
inch
59
Rotor Width
inch
59
Capacity
stph
440-660
mtph
400-600
Power
HP
428
Weight
lbs
48100
Primary Impact Crushers
AIHP1620
Rotor Diameter
inch
63
Rotor Width
inch
78.7
Capacity
stph
660-1040
mtph
600-950
Power
HP
544
Weight
lbs
89300
Secondary Impact Crushers
AIHS4440
Rotor Width
inch
40
Maximum Feed Size
inch
12
mm
300
Capacity
stph
110-165
mtph
130-200
Power
HP
250
Weight
lbs
37500
|
|
|
Secondary Impact Crushers
AIHS4448
Rotor Width
inch
48
Maximum Feed Size
inch
12
mm
300
Capacity
stph
165-220
mtph
170-250
Power
HP
300
Weight
lbs
41900
|
|
|
Secondary Impact Crushers
AIHS4459
Rotor Width
inch
59
Maximum Feed Size
inch
12
mm
300
Capacity
stph
275-385
mtph
250-350
Power
HP
350-450
Weight
lbs
46300
|
|
|
Secondary Impact Crushers
AIHS4840
Rotor Diameter
inch
48
Rotor Width
inch
40
Maximum Feed Size
inch
10
mm
250
Capacity
stph
110-165
mtph
100-150
Power
HP
200-250
Weight
lbs
38600
Secondary Impact Crushers
AIHS5148
Rotor Diameter
inch
51.2
Rotor Width
inch
48
Maximum Feed Size
inch
14
mm
350
Capacity
stph
165-220
mtph
150-250
Power
HP
300
Weight
lbs
50700
Secondary Impact Crushers
AIHS5159
Rotor Diameter
inch
51.2
Rotor Width
inch
59
Maximum Feed Size
inch
14
mm
350
Capacity
stph
275-385
mtph
250-350
Power
HP
350-450
Weight
lbs
55100
Tertiary Impact Crushers
AIHT4359
Rotor Diameter
inch
43
Rotor Width
inch
59
Max Feed Size
inch
6
mm
150
Capacity
stph
310-350
mtph
280-320
Power
HP
428
Weight
lbs
50377
Tertiary Impact Crushers
AIHT4340
Rotor Diameter
inch
43
Rotor Width
inch
40
Max Feed Size
inch
6
mm
150
Capacity
stph
240-280
mtph
220-250
Power
HP
270-340
Weight
lbs
41336
Tertiary Impact Crushers
AIHT4320
Rotor Diameter
inch
43
Rotor Width
inch
20
Max Feed Size
inch
6
mm
150
Capacity
stph
110-130
mtph
100-120
Power
HP
150
Weight
lbs
29762

Make the Competition See Red

Our expertise stems from the many years of working with the largest aggregate companies in the world and having seen almost every application for aggregate machinery out there.

From the building of machinery in the early years we know what works and what doesn’t. From our extensive time in the field with producers, we have a strong understanding of what is required to keep an end user profitable, and we are always available to assist.
