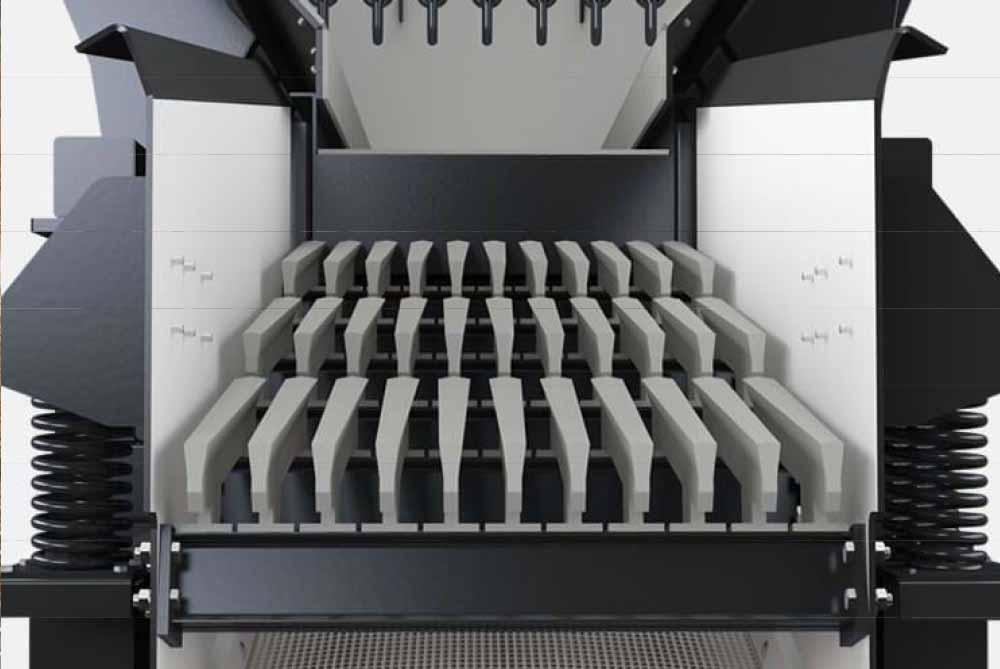

Grizzly Feeders

AGGRETEK’s grizzly feeders have been designed to excel in the harshest conditions and applications. High abrasion resistance, durable heat-treated drive console and high quality vibrators ensure peak efficiency, reliable feeding and effective long-term operation with minimum breakdowns.

FEATURES

HEAVY-DUTY VIBRATING SCREENS
The output material of the primary group may need to be screened in accordance with the installation plan. In these cases, standard vibrating screens may not meet the required capacity and can be disadvantageous in respect to servicing costs, but the top decks of our heavy-duty screens are equipped with grizzly or abrasion resistant perforated plates to avoid any damage caused by large-size materials. The springs on heavy-duty screens are more durable as well.

For Your Heaviest Duties With High Capacity Feeding And Scalping

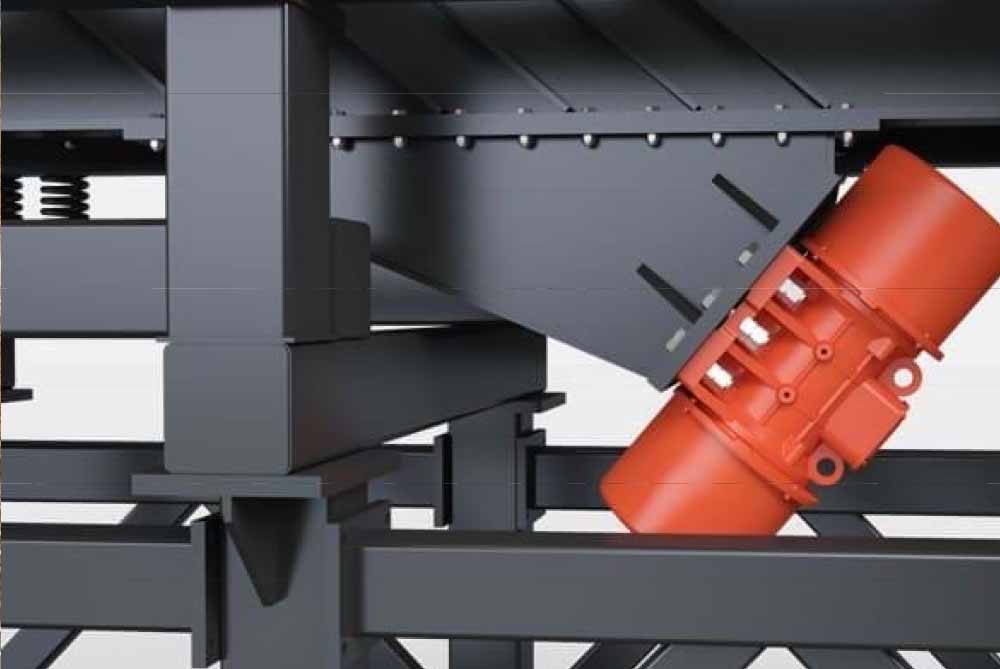

PROVEN QUALITY VIBRATORS
The vibrators used on our feeders are of internationally approved quality, and serve to increase feeder performance to the highest level. The frequency of these vibrators is adjustable through the control panel, making it very easy to maintain the grizzly feeder’s performance at peak levels according to the nature of the rock being crushed.

IMPERIAL

AGF208-1
W x L
feet
20x8
Drive
HP
2x7.5
Capacity
stph
88-110
Length of Grizzly
feet
2.5
Maximum Feed Size
inch
14
AGF308-1
W x L
feet
30x8
Drive
HP
2x15
Capacity
stph
110-180
Length of Grizzly
feet
2.5
Maximum Feed Size
inch
18
AGF3511-1
W x L
feet
35x11
Drive
HP
2x15
Capacity
stph
165-220
Length of Grizzly
feet
3.3
Maximum Feed Size
inch
24
AGF3614-1
W x L
feet
36x14
Drive
HP
2x15
Capacity
stph
200-280
Length of Grizzly
feet
3.6
Maximum Feed Size
inch
20
AGF4315-2
W x L
feet
43x15
Drive
HP
2x15
Capacity
stph
220-330
Length of Grizzly
feet
4.6
Maximum Feed Size
inch
32
AGF4720-2
W x L
feet
47x20
Drive
HP
2x20
Capacity
stph
440-660
Length of Grizzly
feet
9
Maximum Feed Size
inch
32
AGF4816-1
W x L
feet
48x16
Drive
HP
2x20
Capacity
stph
440-660
Length of Grizzly
feet
6
Maximum Feed Size
inch
22
AGF4820-1
W x L
feet
48x20
Drive
HP
2x20
Capacity
stph
440-660
Length of Grizzly
feet
9
Maximum Feed Size
inch
24
AGF5516-1
W x L
feet
55x16
Drive
HP
2x20
Capacity
stph
330-550
Length of Grizzly
feet
6
Maximum Feed Size
inch
36
AGF5520-1
W x L
feet
55x20
Drive
HP
2x25
Capacity
stph
550-880
Length of Grizzly
feet
9
Maximum Feed Size
inch
36
AGF6020-1
W x L
feet
60x20
Drive
HP
2x25
Capacity
stph
660-880
Length of Grizzly
feet
9
Maximum Feed Size
inch
40

METRIC

AGF208-1
W x L
mm
510x2400
Drive
kW
2x5.6
Capacity
mtph
80-100
Length of Grizzly
mm
760
Maximum Feed Size
mm
350
AGF308-1
W x L
mm
760x2400
Drive
kW
2x11.2
Capacity
mtph
100-160
Length of Grizzly
mm
760
Maximum Feed Size
mm
450
AGF3511-1
W x L
mm
900x3400
Drive
kW
2x11.2
Capacity
mtph
150-200
Length of Grizzly
mm
1000
Maximum Feed Size
mm
600
AGF3614-1
W x L
mm
910x4300
Drive
kW
2x11.2
Capacity
mtph
180-250
Length of Grizzly
mm
1100
Maximum Feed Size
mm
508
AGF4315-2
W x L
mm
1100x4600
Drive
kW
2x11.2
Capacity
mtph
200-300
Length of Grizzly
mm
1400
Maximum Feed Size
mm
800
AGF4720-2
W x L
mm
1200x6100
Drive
kW
2x15
Capacity
mtph
400-600
Length of Grizzly
mm
2800
Maximum Feed Size
mm
800
AGF4816-1
W x L
mm
1220x4900
Drive
kW
2x15
Capacity
mtph
400-600
Length of Grizzly
mm
1800
Maximum Feed Size
mm
550
AGF4820-1
W x L
mm
1220x6100
Drive
kW
2x15
Capacity
mtph
400-600
Length of Grizzly
mm
2800
Maximum Feed Size
mm
600
AGF5516-1
W x L
mm
1400x4900
Drive
kW
2x15
Capacity
mtph
300-500
Length of Grizzly
mm
1800
Maximum Feed Size
mm
900
AGF5520-1
W x L
mm
1400x6100
Drive
kW
2x19
Capacity
mtph
500-800
Length of Grizzly
mm
2800
Maximum Feed Size
mm
900
AGF6020-1
W x L
mm
1500x6100
Drive
kW
2x19
Capacity
mtph
600-800
Length of Grizzly
mm
2800
Maximum Feed Size
mm
1000

Make the Competition See Red

Our expertise stems from the many years of working with the largest aggregate companies in the world and having seen almost every application for aggregate machinery out there.

From the building of machinery in the early years we know what works and what doesn’t. From our extensive time in the field with producers, we have a strong understanding of what is required to keep an end user profitable, and we are always available to assist.
