Pan Feeders

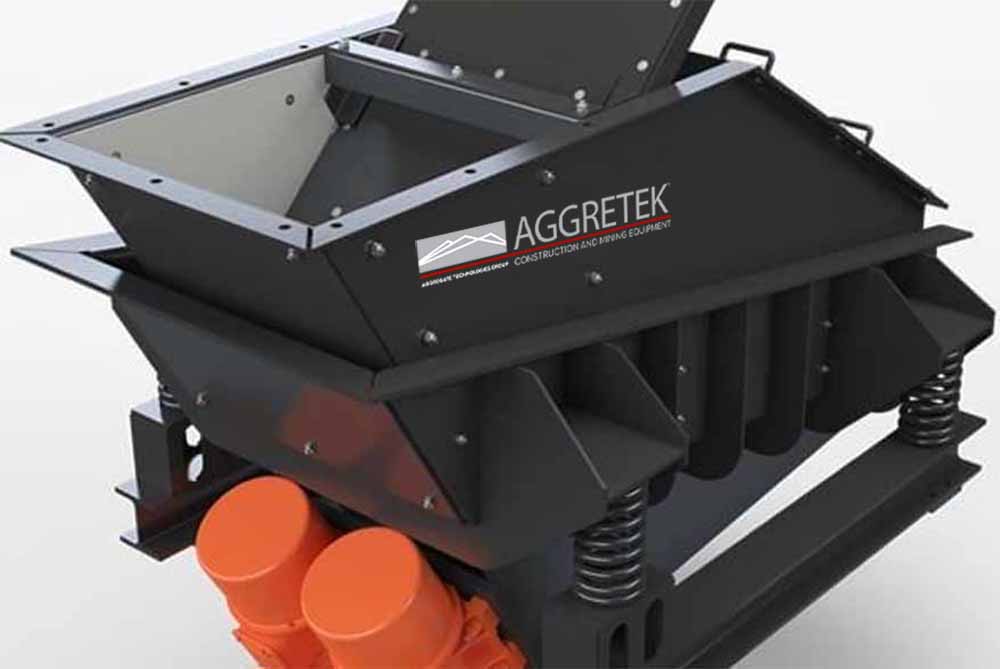

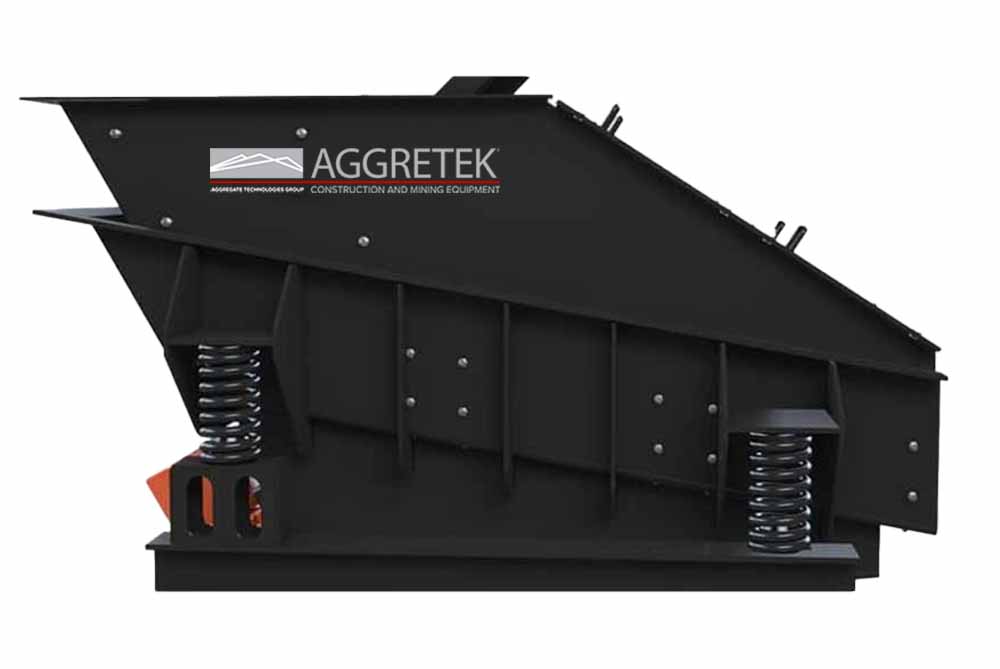

AGGRETEK pan feeders have been designed for the toughest conditions and applications. A variety of sizes and types make our feeders suitable for the constant feeding of crushers and screens after the primary crushing stage. Both base mounted and suspended models with large drive units and proper feed chutes are designed to make high feed rates even of coarse materials possible.

FEATURES

VERSATILE FEEDING STRUCTURE

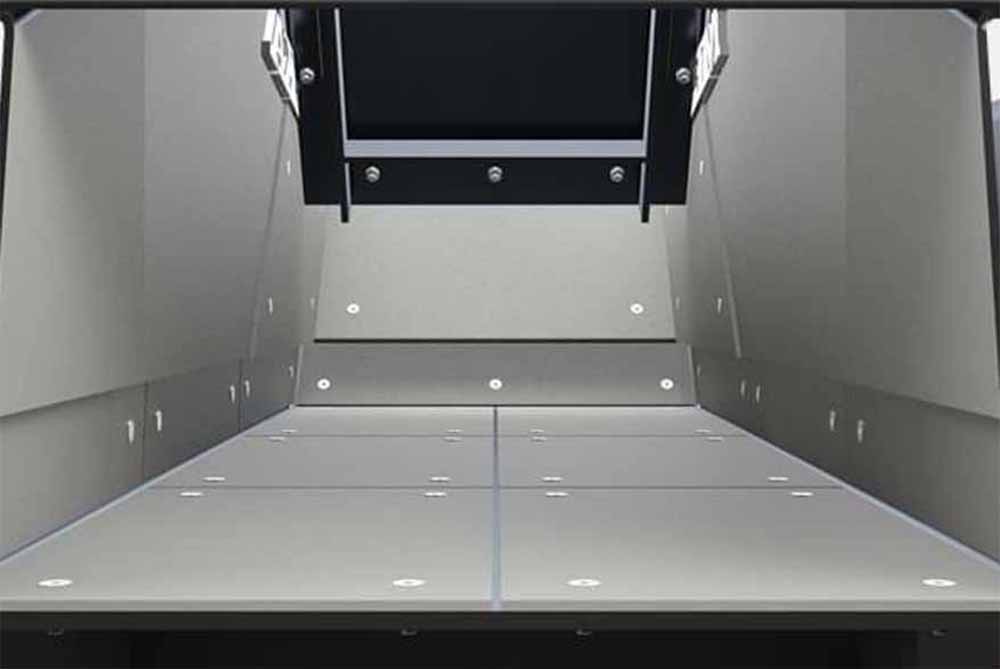

AGGRETEK Pan Feeders are designed to meet a wide variety of client needs. Primary series pan feeders are suitable for use with both fine river gravels and coarse blasted rocks. AGGRETEK pan feeders are adapted to this range of use thanks to the heat-treated drive console (for stress relief), bolted joints and hardox abrasion-resistant liners.

Wide Range Of Applications For Constant Feeding Of Crushers And Screens After The Primary Stage

IMPROVED FEEDING PERFORMANCE
Secondary series pan feeders are very efficient, both for feeding the materials in the pre-stock area to the secondary crushers as well as for operating under the hopper. Our secondary series pan feeders are designed to feed the material from a pre-stock area or bin without carrying the complete material load, so it’s possible to feed materials of a smaller size while retaining high performance.

PROVEN QUALITY VIBRATORS
The vibrators used on our feeders are of internationally approved quality, and serve to increase feeder performance to the highest level. The frequency of these vibrators is adjustable through the control panel, making it very easy to maintain the grizzly feeder’s performance at peak levels according to the nature of the rock being crushed.

IMPERIAL

APF265
W x L
inch x feet
26x5
Drive
HP
2x1.5
Capacity
stph
110-165
Maximum Feed Size
inch
8
APF336
W x L
inch x feet
33x6
Drive
HP
2x2
Capacity
stph
165-220
Maximum Feed Size
inch
10
APF407
W x L
inch x feet
40x7
Drive
HP
2x3
Capacity
stph
220-275
Maximum Feed Size
inch
12
APF447
W x L
inch x feet
47x7
Drive
HP
2x3
Capacity
stph
275-385
Maximum Feed Size
inch
13
APF597
W x L
inch x feet
59x7
Drive
HP
2x5
Capacity
stph
330-460
Maximum Feed Size
inch
16

METRIC

APF265
W x L
mm
650x1500
Drive
kW
2x1.1
Capacity
mtph
100-150
Maximum Feed Size
mm
200
APF336
W x L
mm
850x1700
Drive
kW
2x1.6
Capacity
mtph
150-200
Maximum Feed Size
mm
260
APF407
W x L
mm
1000x2000
Drive
kW
2x2.2
Capacity
mtph
200-250
Maximum Feed Size
mm
300
APF447
W x L
mm
1200x2000
Drive
kW
2x2.2
Capacity
mtph
250-350
Maximum Feed Size
mm
330
APF597
W x L
mm
1500x2000
Drive
kW
2x3.8
Capacity
mtph
300-420
Maximum Feed Size
mm
400
