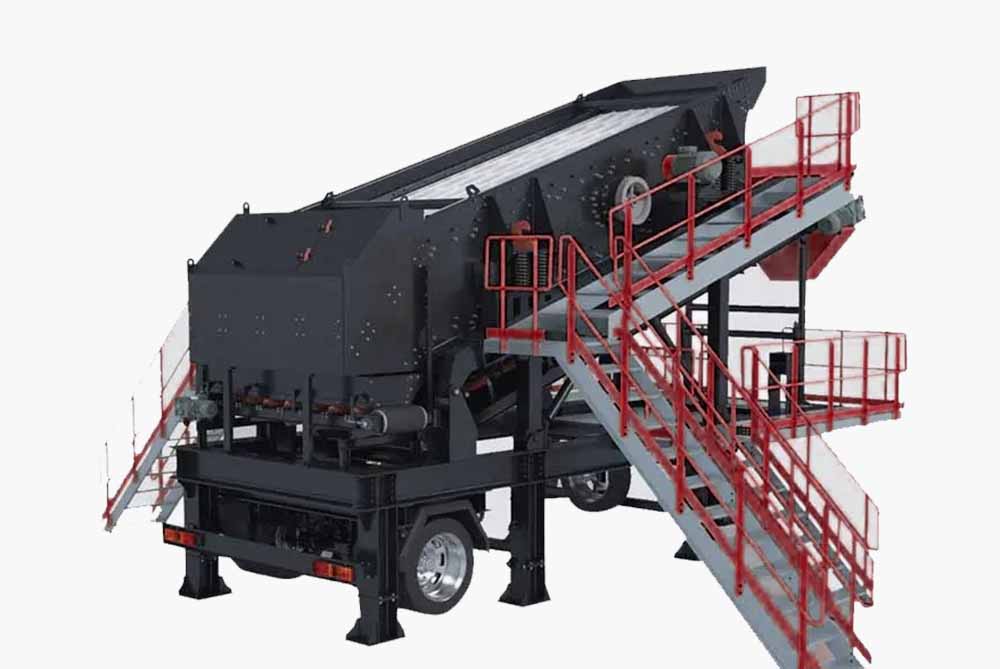

Portable Inclined Screens

The screening process is just as important as the crushing itself. Screens are the heart of every rock processing plant. They are used to classify materials both in different stages of the crushing process and in final product separation.

Endurance, Capacity And Efficiency

Temporary aggregate production is very common for short-term projects like road and dam construction. Since most of the time the equipment is moved out of the temporary quarry, disassembly, transportation and installation expenses add extra costs that can be just as significant as the start-up investment itself. In such cases, despite higher initial investment costs, mobile crushing and screening solutions are better options than stationary ones because of the time-saving disassembly, transportation and installation advantages they provide.

EASY MAINTENANCE THANKS TO OUR MOVABLE FRONT CHUTE WITH SLIDER

 Screen mesh is one of the most frequently replaced spare parts on inclined screens. To simplify the maintenance process and reduce downtime, we designed front chutes with sliders for inclined screens bigger than 8 m² so the front chute can be moved without using any lifting equipment. This provides easy access to the screen for maintenance in just a few minutes.

MODULAR-TYPE DRIVE SYSTEM

 AGGRETEK inclined screens are equipped with a modular-type drive system for easy servicing. The two-piece drive-shaft system can be detached easily one by one, reducing servicing duration. Additionally, the cardan shaft connecting the modular shafts is more advantageous than traditional heavier and single-piece shafts in terms of easy maintenance.

Wire Cloth Stretching System

Screen meshes are fastened to the screen body by means of screen clamps and sheet bars, after being well stretched at the edges by the tension sheet. Thus, any slackening of the screen meshes during the screening process is prevented.

IMPERIAL

Dimensions
in feet
ASI4132
4x13
ASI5132
5x13
ASI5162
5.2x16.4
ASI6162
6.6x16.4
ASI6202
6.6x20
ASI7202
7.9x20
ASI8202
8.2x20.7
Number of Decks
ASI4132
qty
ASI5132
2 / 3 / 4
ASI5162
2 / 3 / 4
ASI6162
2 / 3 / 4
ASI6202
2 / 3 / 4
ASI7202
2 / 3 / 4
ASI8202
2 / 3 / 4
Power
HP
ASI4132
10
ASI5132
20
ASI5162
20
ASI6162
25
ASI6202
30
ASI7202
40
ASI8202
50

METRIC

Dimensions
mm
ASI4132
1200x4000
ASI5132
1500x4000
ASI5162
1600x5000
ASI6162
2000x5000
ASI6202
2000x6000
ASI7202
2400x6000
ASI8202
2500x6300
Number of Decks
ASI4132
2 / 3 / 4
ASI5132
2 / 3 / 4
ASI5162
2 / 3 / 4
ASI6162
2 / 3 / 4
ASI6202
2 / 3 / 4
ASI7202
2 / 3 / 4
ASI8202
2 / 3 / 4
Power
kW
ASI4132
7.5
ASI5132
15
ASI5162
15
ASI6162
18.5
ASI6202
22
ASI7202
30
ASI8202
37

High Quality Screen Body Steel Plates

Every inclined screen is made of high-tensile heat-treated side plates that are resistant to vibration, allowing our customers to use them long-term with the same durability as during first use.

Self Tensioned Motorbase

AGGRETEK inclined screens, a self-tentioned motorbase is a standard feature to protect both the electric motor and drive belts against teneion caused by vibrations, meaning less maintenance duratio and lower costs for our customers.

Huck-Bolted

Side plates are made from high quality steel and laser cut holes. Frames are huck-bolted to the side plates insuring structural integrity and eliminates stress fatigue in the screen body.

Motor Base

The motor base coupled with the belt tensioning system enables a practical motor assembly and V belt – pulley replacement, and provides energy efficiency by keeping the belt tention at the desired level. In addition, by providing a bolted connection between the motor frame and the main frame, cracks and fatigue isses associated with welding are avoided.
