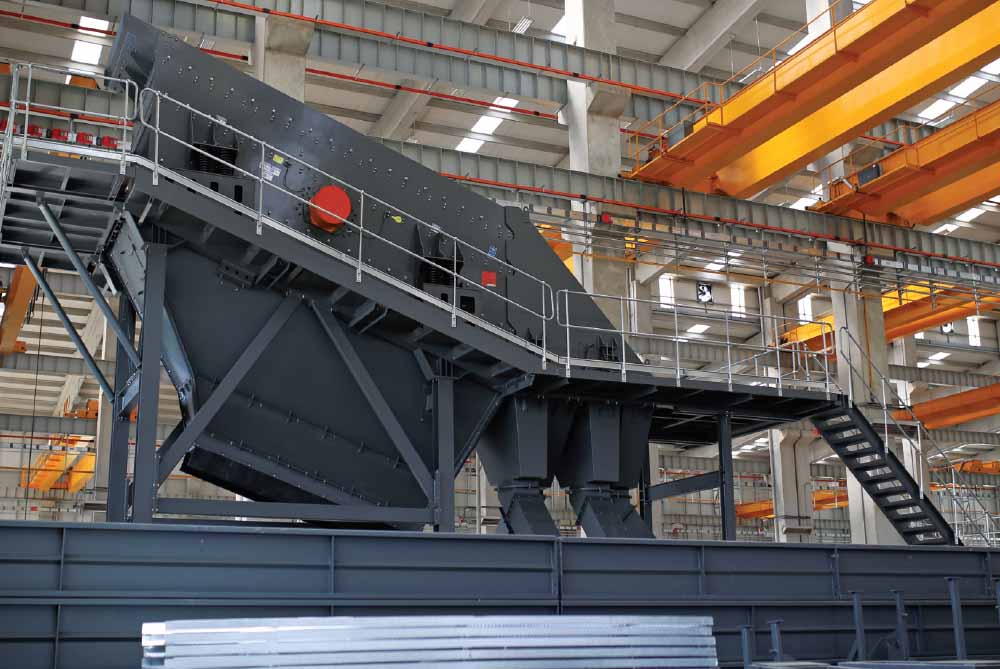

Inclined Screens

The screening process is just as important as the crushing itself. Screens are the heart of every rock processing plant. They are used to classify materials both in different stages of the crushing process and in final product separation.

FEATURES

High Quality Screen Body Steel Plates
Every inclined screen is made of high-tensile heat-treated side plates that are resistant to vibration, allowing our customers to use them long-term with the same durability as during first use.

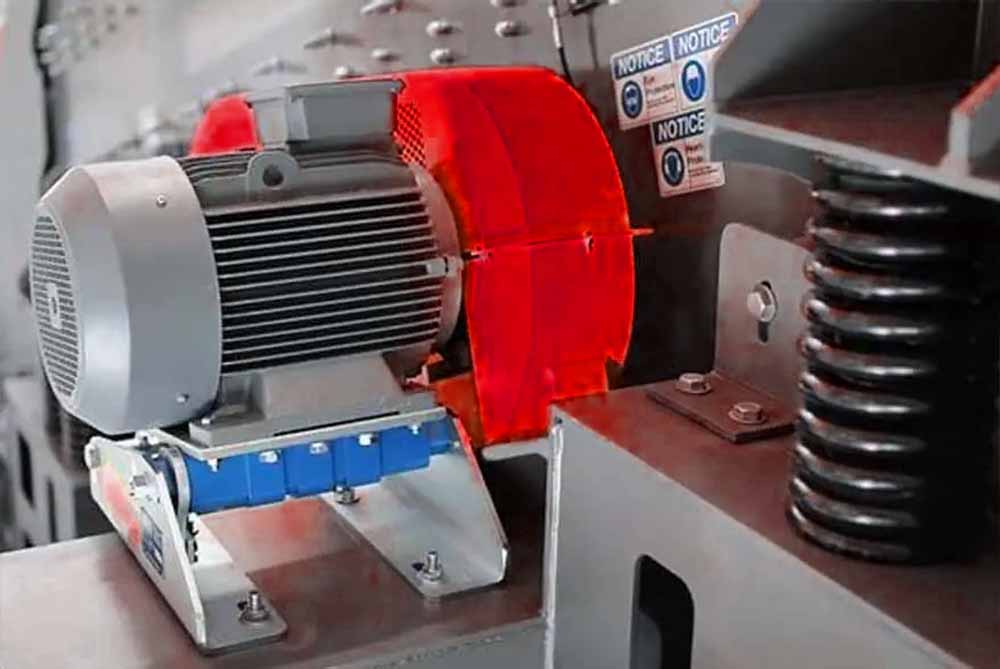

Self Tensioned Motorbase
AGGRETEK inclined screens, a self-tentioned motorbase is a standard feature to protect both the electric motor and drive belts against teneion caused by vibrations, meaning less maintenance duratio and lower costs for our customers.

Huck-Bolted Assembly Side Plates
Screen bodies with a conventional bolted assemble create extra labour costs, increase security risks and reduce overall profitability beacause of the rupture of bolts caused by loosening nuts.

Endurance, Capacity And Efficiency

Designed as a non-welded frame with adjustable vibration features for different material types and screening sizes, AGGRETEK screens provide screening efficiency that is high quality and dependable. Our screens come in various sizes starting from 2 m2 (22 sqft) up to 16 m2 (172 sqft) and are equipped with up to four decks that can be supplied with different types of meshes, such as grizzly, perforated sheet, polyurethane and steel meshes, with washing options to meet the requirements of a wide range of applications.

EASY MAINTENANCE THANKS TO OUR MOVABLE FRONT CHUTE WITH SLIDER



Screen mesh is one of the most frequently replaced spare parts on inclined screens. To simplify the maintenance process and reduce downtime, we designed front chutes with sliders for inclined screens bigger than 8 m² so the front chute can be moved without using any lifting equipment. This provides easy access to the screen for maintenance in just a few minutes.

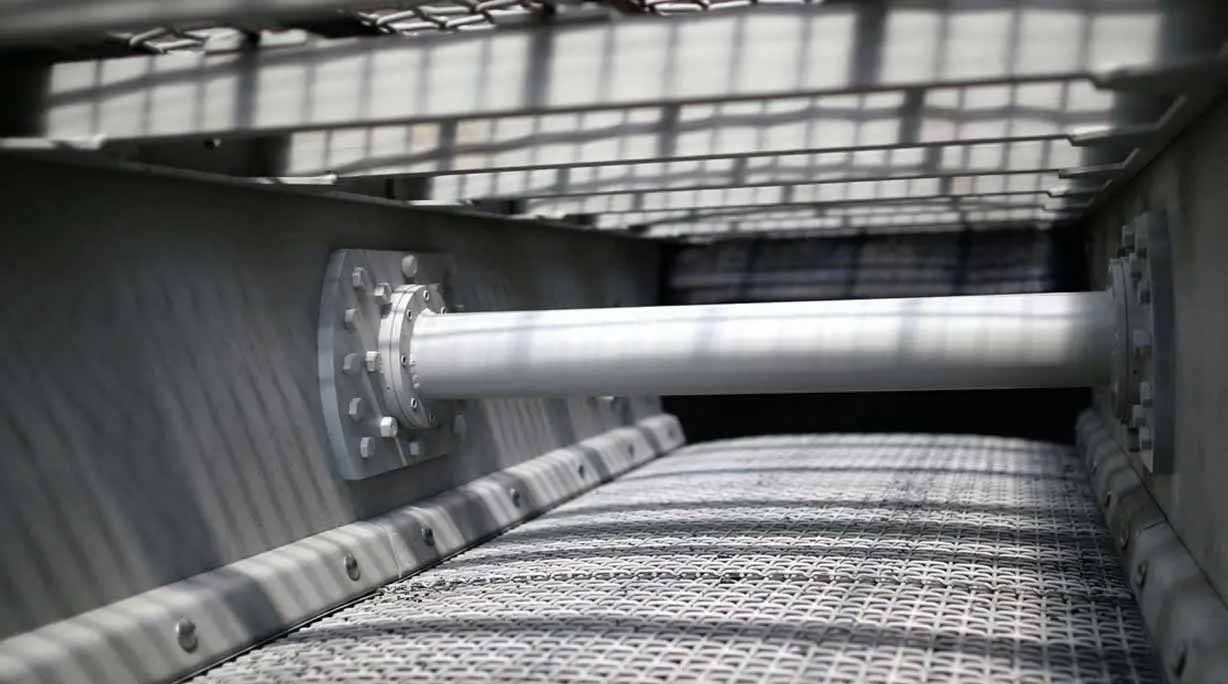

MODULAR-TYPE DRIVE SYSTEM



AGGRETEK inclined screens are equipped with a modular-type drive system for easy servicing. The two-piece drive-shaft system can be detached easily one by one, reducing servicing duration. Additionally, the cardan shaft connecting the modular shafts is more advantageous than traditional heavier and single-piece shafts in terms of easy maintenance.



IMPERIAL

Dimensions
in feet
ASI4132
4x13
ASI5132
5x13
ASI5162
5.2x16.4
ASI6162
6.6x16.4
ASI6202
6.6x20
ASI7202
7.9x20
ASI8202
8.2x20.7
Number of Decks
ASI4132
qty
ASI5132
2 / 3 / 4
ASI5162
2 / 3 / 4
ASI6162
2 / 3 / 4
ASI6202
2 / 3 / 4
ASI7202
2 / 3 / 4
ASI8202
2 / 3 / 4
Power
HP
ASI4132
10
ASI5132
20
ASI5162
20
ASI6162
25
ASI6202
30
ASI7202
40
ASI8202
50

METRIC

Dimensions
mm
ASI4132
1200x4000
ASI5132
1500x4000
ASI5162
1600x5000
ASI6162
2000x5000
ASI6202
2000x6000
ASI7202
2400x6000
ASI8202
2500x6300
Number of Decks
ASI4132
2 / 3 / 4
ASI5132
2 / 3 / 4
ASI5162
2 / 3 / 4
ASI6162
2 / 3 / 4
ASI6202
2 / 3 / 4
ASI7202
2 / 3 / 4
ASI8202
2 / 3 / 4
Power
kW
ASI4132
7.5
ASI5132
15
ASI5162
15
ASI6162
18.5
ASI6202
22
ASI7202
30
ASI8202
37
