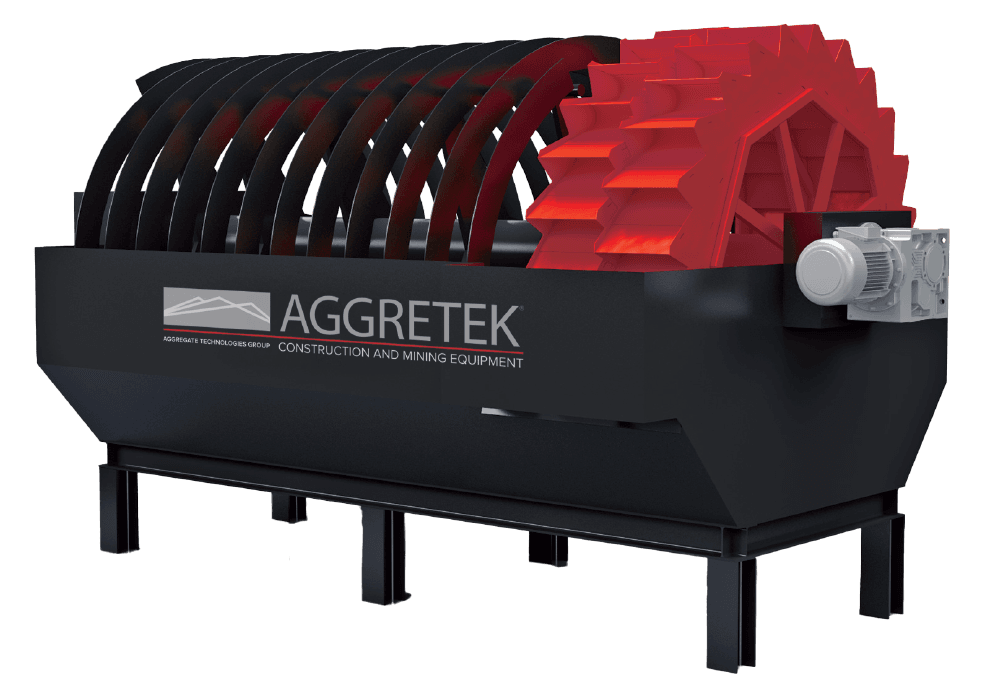

Bucket Wheel Dewaterer

AGGRETEK Bucket Wheel range of sand classification systems are designed to operate with maximum versatility for efficient dewatering and fine sand recovery from the solid-water suspension in the underflow of a washing screen or dissolving station. The twin bucket units provide the removal of clays, silts and slimes to produce up to 2 grades of sand.

FEATURES

Applications

  • Gravel and concrete sand industries
  • The production of industrial sand
  • The treatment of polluted soils
  • Rehabilitation of industrial sites
  • Dredging of rivers or harbours, ect.

Recovery
Can recover 1 or 2 grades of sand from a wet feed.

Maximum recovery of all material above 75 (200 mesh) providing major reduction in fine material dishcharging to the water management system, thus reducing recovery cycle and saving money.

Excellent Fine Recovery

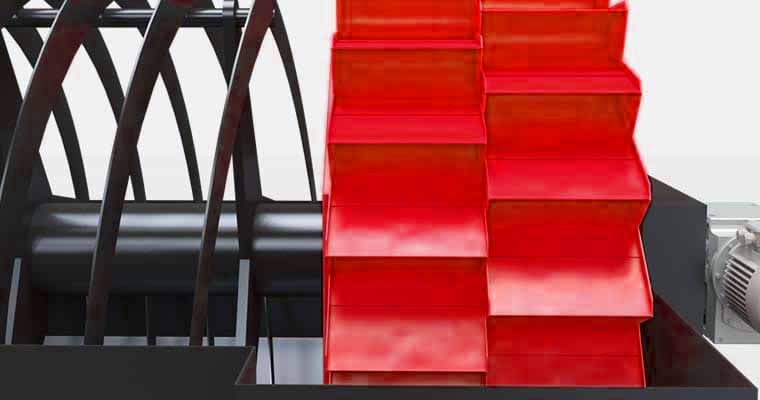

Sand from a washing screen becomes a solution with water and is fed into the bucket tank of the washer. Most of the course sand is taken away by the buckets, drained and discharged. The rest of this sand then floats in suspension to the auger tank. The courser of this sand, sinks to the bottom and is removed to the buckets for discharge by the auger screw. The silt,then floats away to the customers ponds. The water flow rate is an important factor, as a material with a high percentage of fines to be removed, will require a high volume of water.

BENEFITS

Bucket wheel dewaterers also boast a big decantation basin, providing great flexibility in control of feeding amount with feeding frequency control. An option for slow operating speed means a very low wear part cost, even for abrasive materials, as a low speed causes less friction and creates better results for fine material recovery. These features make the bucket wheel dewaterer one of the most cost-friendly solutions for washing applications.

IMPERIAL

ABW60
Drive (hp)
7.5
Water Consumption (gpm)
220-300
Capacity (stph)
44-66
Working (rpm)
2-5
ABW100
Drive (hp)
10
Water Consumption (gpm)
330-440
Capacity (stph)
66-110
Working (rpm)
2-5
ABW150
Drive (hp)
15
Water Consumption (gpm)
440-550
Capacity (stph)
110-165
Working (rpm)
2-5

METRIC

ABW60
Drive (kW)
5.5
Water Consumption (mT/hr)
50-75
Capacity (mtph)
40-60
Working (rpm)
2-5
ABW100
Drive (kW)
7.5
Water Consumption (mT/hr)
75-100
Capacity (mtph)
60-100
Working (rpm)
2-5
ABW150
Drive (kW)
11
Water Consumption (mT/hr)
100-125
Capacity (mtph)
100-150
Working (rpm)
2-5
